Product guide

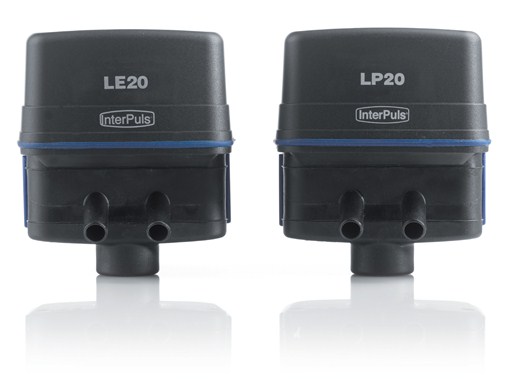

Electronic Pulsators LE20 & LP20
.jpg)
Electronic independent diaphragm-driven pulsators combine superb pulsation performance with excellent vacuum stability for improved udder health.
The technology and designs which have been employed are intended to ensure long term reliability with low maintenance costs even under the most demanding operating conditions.
Benefits
- Precision control of the pulse signal and excellent pulsation characteristics ensure optimum milking and rest
phases - Specially designed to minimise vacuum demand, thereby ensuring excellent vacuum stability
- Low energy consumption to avoid oxidation problems
- Totally sealed to provide total protection against moisture and humidity
- Fresh air option for severe conditions
- Quietness operation
- Quick and easy to service:a complete pulsator service can be completed in 10-12 minutes
- Lead and water-proof connector included
LP20 are individual pulsators, provided with an internal programmable Pulsation PCB and only need an external transfomer 24VDC filtered or 12VDC filtered
LE20 are not provided with the internal PCB and must be operated by an external Pulsation Controller, like as:
- IC 24VDC (InterPuls Control-box)
- ACR-Puls Panel (Automatic Cluster Removal + Pulsation & Stimulation)
- iMIlk 500 Panel (Milk Yield Indicator + ACR + Pulsation & Stimulation)
| CODE | DESCRIPTION | |
|---|---|---|
|
1030581 | Set Kit Service LE/LP20 W/OR (10X1030578) |
|
1030577 | *Kit Revisione CV20 W/OR |
|
1030579 | Kit Service LG FWD W/OR |
|
1030578 | Kit Service LE/LP20 W/OR |
|
1030575 | Kit Fairlead LE/LP/CV |
